Searching and Redirection (L4)
Learning objectives
- Search for characters or patterns in a text file using the
grepcommand - Write to and append a file using output redirection
- Use of pipe (
|) character- How can I combine existing commands to do new things?
Recap from last week
*matches zero or more characters in a filename?matches a single character in a filename- Use of the key may be described in many ways, including Ctrl-X, Control-X, or ^X.
- The shell does not have a trash bin, once something is deleted it is really gone.
- Most file names are something.extension. The extension is not required, but does help bioinformatic programs find required files for downstream processing.
- Depending on the type of work you do, you may need a more powerful text editor than Nano.
Class Exercise: Participation Grade
Before moving on, please complete the following class activity below. You will have ~5 minutes to answer all questions. Please submit the quiz without answering the last question.
Searching files with grep command
In the same way that many of us now use ‘Google’ as a verb meaning ‘to find’, UNIX programmers often use the word grep.
-
grepis a contraction of ‘global/regular expression/print’, a common sequence of operations in early UNIX text editors. It is also the name of a very useful command-line program. -
grepallows you to search plain-text files without opening them.
The syntax for grep is as follows:
grep search-term filename
The pattern that we want to search is specified in the search-term slot, and the file we want to search within is specified in the filename slot. Let's generate a file to try this on first!
Class Exercise
You will have ~5 minutes to complete.
NOTE: It is never my intention to rush you. If you do find you need more time to participate, please let me know.
-
Copy the following text into a text file. Name the text file haiku.txt.
It might be good to make a folder called class-exercises or something like that for activities like this moving forward!
The Tao that is seen Is not the true Tao, until You bring fresh toner. With searching comes loss and the presence of absence: "My Thesis" not found. Yesterday it worked Today it is not working Software is like that. -
Now that you have haiku.txt created save and exit the text editor.
-
On your terminal try the following command:
grep not haiku.txt -
Copy-and-paste the output from this command as an answer in the class-activity quiz.
-
Now try the following command:
grep Not haiku.txt -
Finally, try the following command:
grep The haiku.txt
Class Exercise Discussion
In the above exercise, not was the first pattern we were searching for. The grep command searches through the file, and then looks for matches to the pattern specified. To use it you typed grep, then the pattern you were searching for and finally the name of the file (or files) you were searching in.
-
You also would have noticed that by default
grepsearches for a pattern in a case-sensitive way. -
Finally, you would have saw upon completing #6, the search pattern we have selected does not have to form a complete word or phrase as the following where two results:
-
The Tao
-
My Thesis
-
Other useful options for grep
To restrict matches to lines containing the word The on its own, we can give grep the -w option. This will limit matches to word boundaries.
grep -w
Sometimes we don’t want to search for a single word, but for a phrase. We can also do this by putting the phrase in quotes:
grep "is not" haiku.txt
Another useful option is -n which numbers the lines that match:
grep -n "it" haiku.txt
grep has lots of other options. To find out what they are, we can type:
grep --help
Searching within FASTQ files with grep

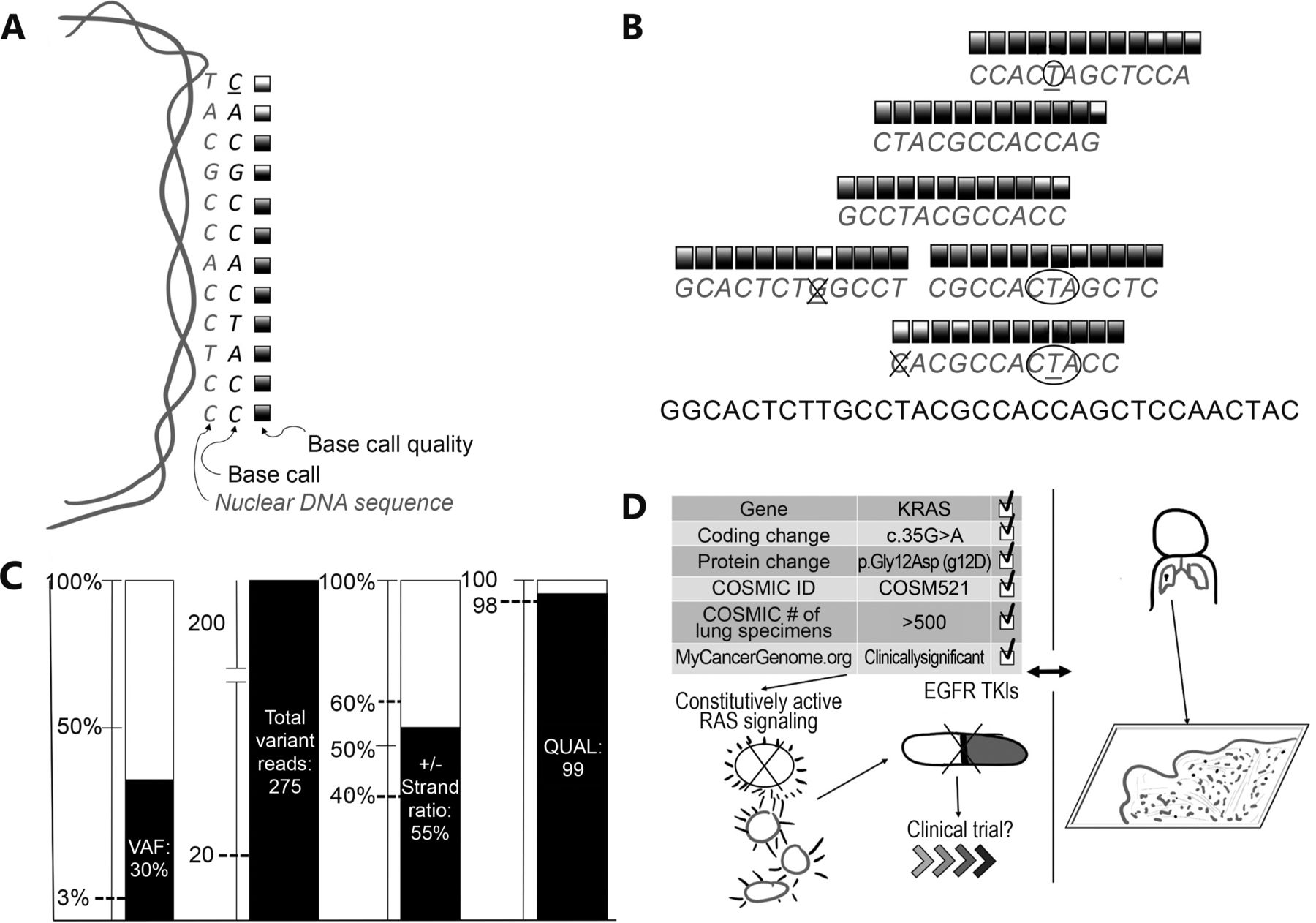

The Next-Generation Sequencing (NGS) technologies all rely on a complex interplay of chemistry, hardware and optical sensors. Adding to this complexity is software to analyze the sensor data to predict the individual bases. This last step in the process is referred to as base-calling. Below is figure from Cancer Biology & Medicine which shows the importance of base-calling in variant analysis. Base-calling algorithms process the raw signal to decode the sequence of bases within strands of DNA or RNA into data stored in BAM or FASTQ files.
FASTQ files contain the sequencing reads (nucleotide sequences) output from a high throughput sequencer. Each sequencing read in a FASTQ file is associated with four lines, with the first line (header line) always starting with an @ symbol. A whole FASTQ record for a single read should appear similar to the following:
@HWI-ST330:304:H045HADXX:1:1101:1111:61397
CACTTGTAAGGGCAGGCCCCCTTCACCCTCCCGCTCCTGGGGGANNNNNNNNNNANNNCGAGGCCCTGGGGTAGAGGGNNNNNNNNNNNNNNGATCTTGG
+
B?@DDDDDDHHH?GH:?FCBGGB@C?DBEGIIIIAEF;FCGGI#########################################################
More information about the FASTQ file format
Line Description 1 Read name preceded by '@' 2 The actual DNA sequence 3 Read name (same as line 1) preceded by a '+' or just a '+' sign 4 String of characters which represent the quality score of each nucleotide in line 2; must have same number of characters as line 2
So what happens if the sequencer is unable to make a decision on which base (A, G, C, T) is the correct one? In this case, the sequencer will designate an N.
Class Exercise
Let's suppose we want to see how many reads in our file Mov10_oe_1.subset.fq contain "bad" data, i.e. reads with 10 consecutive Ns (NNNNNNNNNN). Go ahead and perform the command for this.
Notice, that this output will only return the lines that contain the NNNNNNNNNN. However, each read in the FASTQ file is made up of 4 lines (as discussed above).
So what if we wanted to see the whole FASTQ record for each of the reads? We would need to modify the default behavior of grep and specify additional argument/options.
The -B and -A arguments are useful to return the matched line plus one before (-B 1) and two lines after (-A 2). Therefore, using these arguments will return the whole read record.
grep -B 1 -A 2 NNNNNNNNNN Mov10_oe_1.subset.fq
@HWI-ST330:304:H045HADXX:1:1101:1111:61397
CACTTGTAAGGGCAGGCCCCCTTCACCCTCCCGCTCCTGGGGGANNNNNNNNNNANNNCGAGGCCCTGGGGTAGAGGGNNNNNNNNNNNNNNGATCTTGG
+
@?@DDDDDDHHH?GH:?FCBGGB@C?DBEGIIIIAEF;FCGGI#########################################################
--
@HWI-ST330:304:H045HADXX:1:1101:1106:89824
CACAAATCGGCTCAGGAGGCTTGTAGAAAAGCTCAGCTTGACANNNNNNNNNNNNNNNNNGNGNACGAAACNNNNGNNNNNNNNNNNNNNNNNNNGTTGG
+
?@@DDDDDB1@?:E?;3A:1?9?E9?<?DGCDGBBDBF@;8DF#########################################################
Group separators (--), and how to remove them
You will notice that when we use the -B and/or -A arguments with the grep command, the output has some additional lines with dashes (--), these dashes work to separate your returned "groups" of lines and are referred to as "group separators". This might be problematic if you are trying to maintain the FASTQ file structure or if you simply do not want them in your output. Using the argument --no-group-separator with grep will disable this behavior:
grep -B 1 -A 2 --no-group-separator NNNNNNNNNN Mov10_oe_1.subset.fq
Now your output should be returned as:
@HWI-ST330:304:H045HADXX:1:1101:1111:61397
CACTTGTAAGGGCAGGCCCCCTTCACCCTCCCGCTCCTGGGGGANNNNNNNNNNANNNCGAGGCCCTGGGGTAGAGGGNNNNNNNNNNNNNNGATCTTGG
+
@?@DDDDDDHHH?GH:?FCBGGB@C?DBEGIIIIAEF;FCGGI#########################################################
@HWI-ST330:304:H045HADXX:1:1101:1106:89824
CACAAATCGGCTCAGGAGGCTTGTAGAAAAGCTCAGCTTGACANNNNNNNNNNNNNNNNNGNGNACGAAACNNNNGNNNNNNNNNNNNNNNNNNNGTTGG
+
?@@DDDDDB1@?:E?;3A:1?9?E9?<?DGCDGBBDBF@;8DF#########################################################
Which line number has a match?
A useful option is the -n option which will print out the line number from the file for the match. Add this option to the previous command:
grep -B 1 -A 2 --no-group-separator -n NNNNNNNNNN Mov10_oe_1.subset.fq
This would return the output:
861213-@HWI-ST330:304:H045HADXX:1:1101:1111:61397
861214:CACTTGTAAGGGCAGGCCCCCTTCACCCTCCCGCTCCTGGGGGANNNNNNNNNNANNNCGAGGCCCTGGGGTAGAGGGNNNNNNNNNNNNNNGATCTTGG
861215-+
861216-@?@DDDDDDHHH?GH:?FCBGGB@C?DBEGIIIIAEF;FCGGI#########################################################
861953-@HWI-ST330:304:H045HADXX:1:1101:1106:89824
861954:CACAAATCGGCTCAGGAGGCTTGTAGAAAAGCTCAGCTTGACANNNNNNNNNNNNNNNNNGNGNACGAAACNNNNGNNNNNNNNNNNNNNNNNNNGTTGG
861955-+
861956-?@@DDDDDB1@?:E?;3A:1?9?E9?<?DGCDGBBDBF@;8DF#########################################################
A small thing you should note is that when using the -n option, lines that have a : after the line number correspond to the lines with the match (e.g 861214:CACTTGTAAGGGCAGGCCCCCTTCACCCTCCCGCTCCTGGGGGANNNNNNNNNNANNN...), while lines with a - after the line number are the surrounding lines retrieved when using the -A and/or -B options (e.g. 861213-@HWI-ST330:304:H045HADXX:1:1101:1111:61397).
Class Exercise
-
Using
grepsearch for the sequence CTCAATGAGCCA inMov10_oe_1.subset.fq. How many sequences do you find? Use the-nargument to distinguish the number of reads that contain this sequence. -
How can you modify the command you typed above so that your search also returns the name of the sequence?
-
If you want to search for the above sequence in all Mov10 replicate fastq files, what command would you use?
Answers
Question 1
grep -n CTCAATGAGCCA Mov10_oe_1.subset.fq
The output returns 5 sequences.Question 2
grep -B 1 CTCAATGAGCCA Mov10_oe_1.subset.fqQuestion 3
grep CTCAATGAGCCA Mov10*
The output returns 5 sequences for Mov10_oe_1 and 3 sequences for Mov10_oe_2.
Redirection
When we use grep, the matching lines are displayed in the Terminal (also called Standard Output or stdout). If the result of the grep search contains only a few lines, we can easily read them. However, if the output is very long, the lines will keep scrolling, and we’ll only be able to see the last few lines on the screen. You might have experienced this when searching for the pattern NNNNNNNNNN.
So, how can we capture this output and save it for later review instead of letting it scroll past in the Terminal?
We can achieve this using redirection. Redirection allows us to send the output from the Terminal to another destination. In this case, we can save the output to a file, which lets us examine it at our convenience.
Redirecting with > AKA "Greater-than sign"
The redirection command for writing something into a file is >.
Let's put all the sequences that contain NNNNNNNNNN from the Mov10_oe_1.subset.fq into another file called bad_reads.txt.
grep -B 1 -A 2 NNNNNNNNNN Mov10_oe_1.subset.fq > bad_reads.txt
Now you should have a new file called bad_reads.txt in the raw_fastq directory.
ls -l
Take a look at the file and see if it contains what you think it should.
NOTE: If we already had a file named
bad_reads.txtin our directory, it would have overwritten it without any warning!
Redirecting (and appending) with >>
The redirection command for appending something to an existing file is >>.
If we use >> it will append to the existing content in a file rather than overwrite it. This can be useful for saving more than one search. For example, the following command will append the bad reads from Mov10_oe_2 to the bad_reads.txt file that we just generated.
grep -B 1 -A 2 NNNNNNNNNN Mov10_oe_2.subset.fq >> bad_reads.txt
ls -l
Did the size of the bad_reads.txt file change? How do we explain this?
Passing output to another command with | (or pipe)
The vertical bar or pipe key is very likely not something you use very often. It is on the same key as the back slash, right above the (Enter/Return)key.
What | does is take the output from one command and runs it through the command specified after it.
First, to really see the benefit let's type the following command again:
grep -B 1 -A 2 NNNNNNNNNN Mov10_oe_1.subset.fq
Notice that we are at the end of the document automatically. It just whizzed on by! And if we wanted to find the first line, it get's messy and "jumpy" - there are even gaps!
Now let's pipe the output of grep command to less. This will allow us to slowly scroll through the entire document using the up and down arrows!
grep -B 1 -A 2 NNNNNNNNNN Mov10_oe_1.subset.fq | less
Remember to use
qto get out of less
Or let's say we are interested in the first few lines, we could do the following:
grep -B 1 -A 2 NNNNNNNNNN Mov10_oe_1.subset.fq | head -n 5
Another thing we can also do is count the number of lines output by grep.
We will introduce another command called wc. The wc command stands for w*ord c*ount. This command counts the number of lines, words and characters in the text input given to it. The -l argument will only count the number of lines instead of counting everything.
grep -B 1 -A 2 NNNNNNNNNN Mov10_oe_1.subset.fq | wc -l
How many lines contain NNNNNNNNNN in the document Mov10_oe_1.subset.fq?
The Power of Pipes
- The pipe is a very important/powerful concept in Shell
- You can string along as many commands together as you like

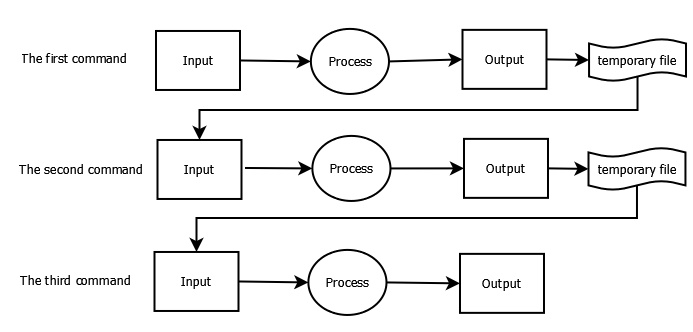

The philosophy behind the three redirection operators (>, >>, |) you have learned so far is that none of them by themselves do a lot. BUT when you start chaining them together, you can do some really powerful things really efficiently.
To be able to use the shell effectively, becoming proficient in the use of the pipe and redirection operators is essential.
Practice with searching and piping/redirection
Let's use the new commands in our toolkit and a few new ones to examine the gene annotation file chr1-hg19_genes.gtf. We will be using this file to find the genomic coordinates of all known exons on chromosome 1. This file is located in the following directory:
~/unix_lesson/reference_data/
Introducing the GTF file format
Let's explore our chr1-hg19_genes.gtf file a bit. What information does it contain?
head -10 chr1-hg19_genes.gtf | less -S
chr1 unknown exon 14362 14829 . - . gene_id "WASH7P"
chr1 unknown exon 14970 15038 . - . gene_id "WASH7P"
chr1 unknown exon 15796 15947 . - . gene_id "WASH7P"
chr1 unknown exon 16607 16765 . - . gene_id "WASH7P"
chr1 unknown exon 16858 17055 . - . gene_id "WASH7P"
chr1 unknown exon 17233 17368 . - . gene_id "WASH7P"
chr1 unknown exon 17606 17742 . - . gene_id "WASH7P"
chr1 unknown exon 17915 18061 . - . gene_id "WASH7P"
chr1 unknown exon 18268 18366 . - . gene_id "WASH7P"
chr1 unknown exon 24738 24891 . - . gene_id "WASH7P
The GTF (Gene Transfer Format) file is a tab-delimited file with information arranged in a very specific manner, usually for NGS analysis. That information is specifically about all the various entities or features found in a genome; in this case, on chromosome 1.
The columns in the GTF file contain the genomic coordinates (location) of gene features (exon, start_codon, stop_codon, CDS) along with the associated gene_names, transcript_ids and protein_ids (p_id).
| Line | Description |
|---|---|
| 1 | chromosome number |
| 2 | source, name of program that generated the feature - its "unknown" above |
| 3 | feature type name |
| 4 | start position of feature |
| 5 | end position of feature |
| 6 | score |
| 7 | strand, defined at + (forward) or - (reverse) |
| 8 | frame |
| 9 | attribute, provides additional information about each feature |
For more information on this file format, check out the Ensembl site.
Given our understanding of splice isoforms, we know that a given exon can be part of 2 or more different transcripts generated from the same gene. In a GTF file, this exon will be represented multiple times, once for each transcript (or splice isoform). For example,
grep PLEKHN1 chr1-hg19_genes.gtf | less -S
This search returns two different transcripts of the same gene, NM_001160184 and NM_032129, that contain the same exon.
Cut & Sort
cutis a command that extracts columns from files.
We will use cut with the -f argument to specify which specific fields or columns from the dataset we want to extract. Let's say we want to get the 1st column (chromosome number) and the 4th column (starting genomic position) and 5th column (ending genomic position) from chr1-hg19_genes.gtf file, we can say:
grep PLEKHN1 chr1-hg19_genes.gtf | cut -f 1,4,5 | head
grep PLEKHN1 chr1-hg19_genes.gtf | cut -f 1,4,5 > coordinates_PLEKHN1.txt
Note: The
cutcommand assumes our data columns are separated by tabs (i.e. tab-delimited). Thechr1-hg19_genes.gtfis a tab-delimited file, so the defaultcutcommand works for us. However, data can be separated by other types of delimiters like "," or ";". If your data is not tab delimited, there is an argument you can add to yourcutcommand,-dto specify the delimiter (e.g.-d ","with a .csv file).
sortis a command used to sort the contents of a file in a particular order. It has arguments that let you pick which column to sort by (-k), what kind of sorting you want to do (numericn) and also if the result of the sorting should only return unique (-u) values. These are just 2 of the many features of the sort command.
Let's run the following command first before using sort:
cut -f 1,4 chr1-hg19_genes.gtf | wc -l
Click here to check your output
Your command should have returned 76,767 lines.
Pipe the output to less - notice all the duplicates!
cut -f 1,4 chr1-hg19_genes.gtf | less
Now apply the sort -u command before counting the lines.
cut -f 1,4 chr1-hg19_genes.gtf | sort -u | wc -l
Click here to check your output
Your command should have returned 27,852 lines.
Summary
grep # Allows for searching within files without opening them
+ grep search_term filename
> # Redirect output to another file
>> # append to an existing file rather than overwrite it
| # Pipe key
+ takes the output and runs it through the command specified after it
cut # used to extract specific columns from a tab-delimited file
sort # used to sort a specific column within a tab-delimited file
